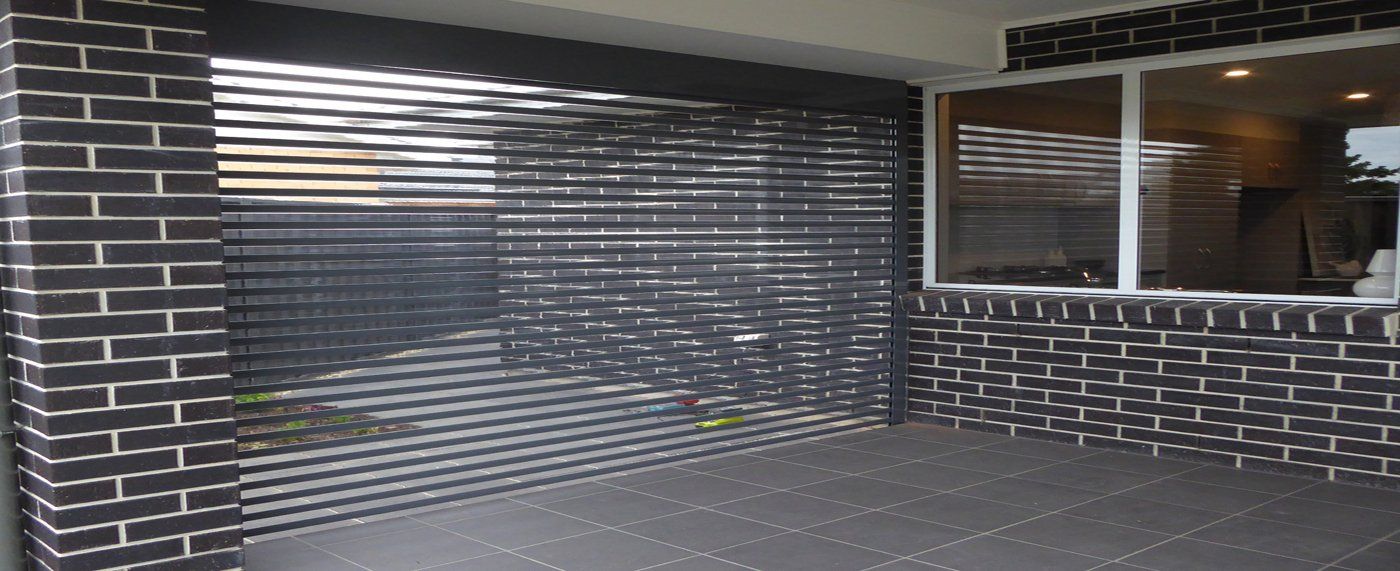

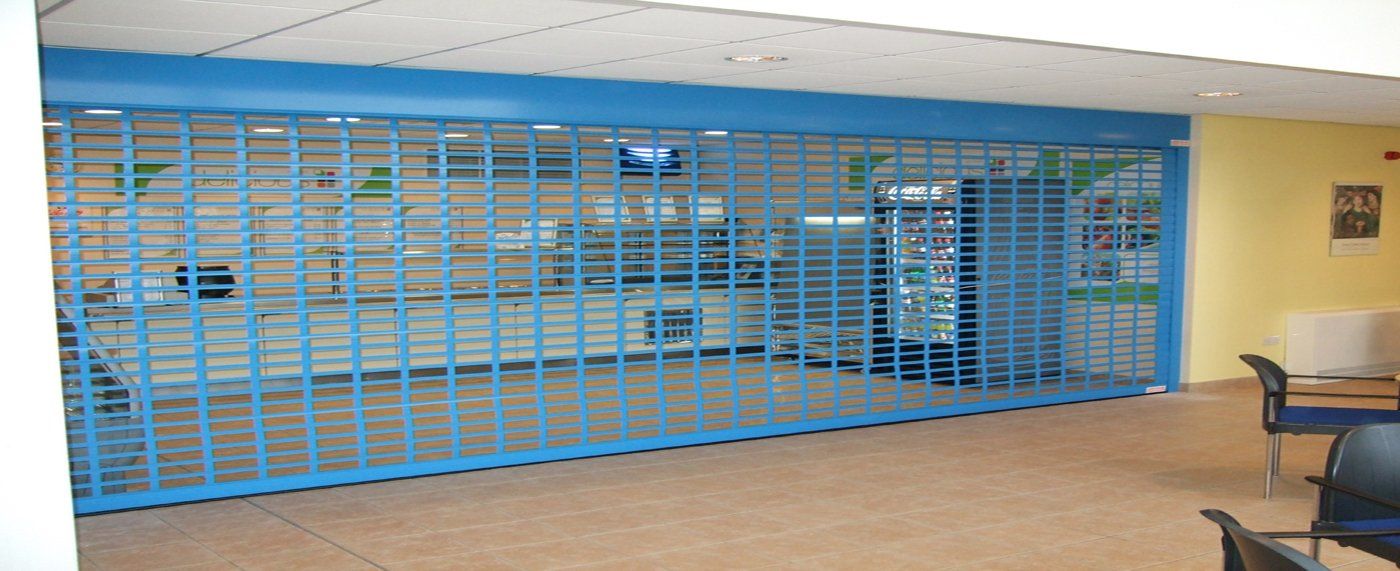

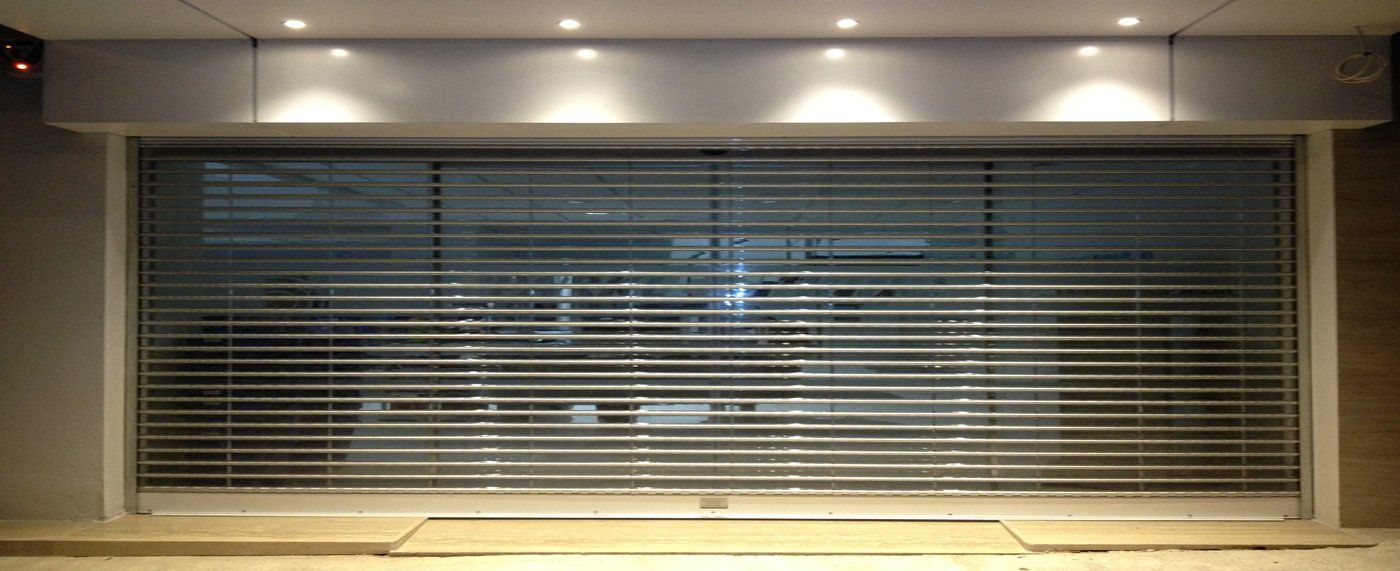

Transparent Roller Shutters are increasing in popularity due to their unique combination of strength, visibility and daylight transmittance.

Synthetic links of polycarbonate assembled in a brick formation can provide as much as 83% transparency and 92% daylight transmittance.

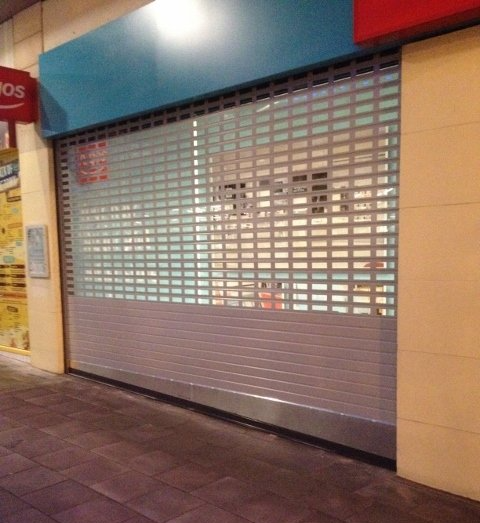

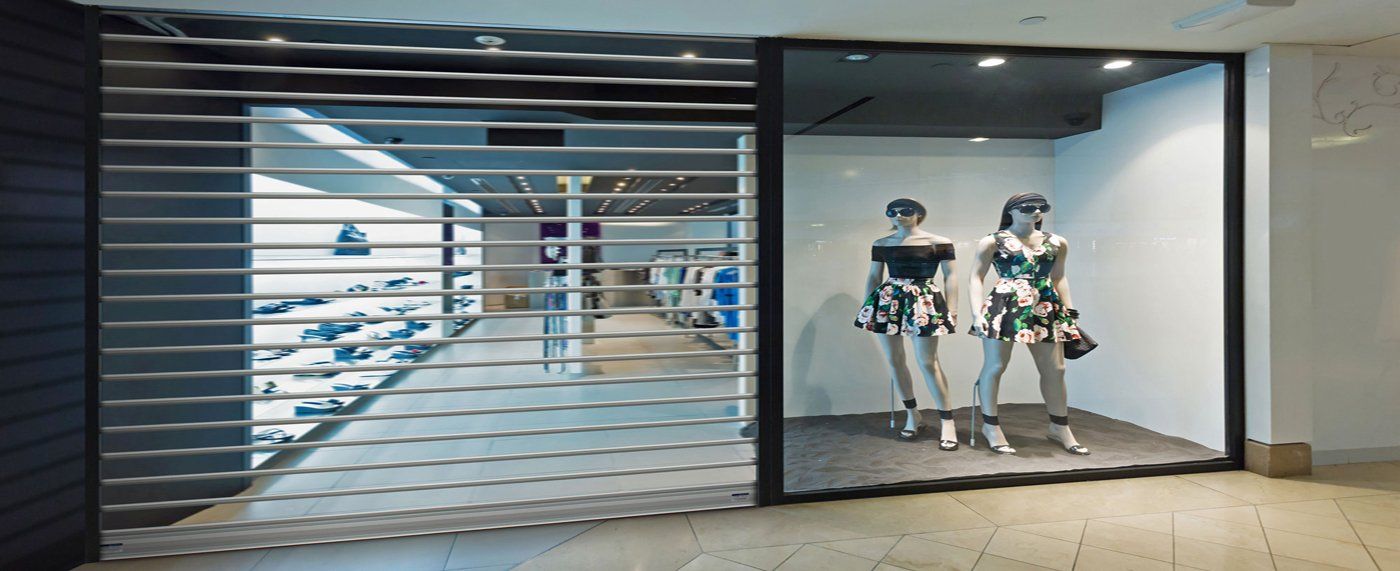

The Transparent Roller Shutters are ideal for retail applications as they allow window displays to be visible whilst the store is closed, they are also popular with banks for security reasons due to the inside being visible during hours of closure.

Aluminium profiled slotted laths with a polycarbonate insert strip where visibility and security are required for a modern appearance

Roller Door Drive Options

Electric Tubular Motor Roller shutter door

240 volt, single-phase tubular motors, typically used on shop-front, office or domestic low use applications. The motor is mounted within the roller mechanism, which reduces the amount of space required to accommodate the shutter box assembly.

Safety brakes (anti fall-back device) mandatory since 2011 under the CPR (Construction product regulations) are fitted to comply with European regulations of failure of the one balancing component.

Emergency hand operation is provided as standard via a hook and eye style hand crank handle.

Available with a wide range of control options.

Key switch, Rocker Switch, Push Button, Remote Control and Group Control to operate numerous shutters from one remote control or location. UPS Battery Back Up

Electric Direct Drive Safedrive

240V and 415V Typically used on industrial applications.Integral safety brake (anti fall-back device) fitted within the motor gearbox protects the vertically opening door from falling. A direct drive motor eliminates the need for counterbalance springs, drive chains or gear trains. Ideal for high usage applications such as industrial premises, car parks or loading bays. Emergency hand chains, activated and operable from floor level are provided as standard.

Available with a wide range of control options.

Push Button, Key switch, Remote Control, Radar, Photo-Cell, Induction Floor Loops.

Fully Automatic, complete with optional Traffic Lights and all relevant Safety Features to comply with Health and Safety.

Motor Operator

240V and 415V Motors typically used on industrial and some domestic applications. Provided with a safety brake (anti fall-back device) fitted to the barrel assembly. Drive chain or gear drive, un-sprung and spring assisted arrangements.

Emergency hand chains activated and operable from high and floor level as well as hand crank if required, all provided as standard.

Available with a wide range of control options.

Push Button, Key switch, Remote Control,
