By reducing the transmittance of heat from the outside in or the inside out, insulated Roller Shutters and doors assist with keeping the inside of the building cooler in summer and warmer in winter .

More stringent building regulations with regards the level of overall performance and insulation on buildings, Insulated Roller Shutters are becoming more popular on all types of industrial and commercial buildings.

Aluminium Insulated Door

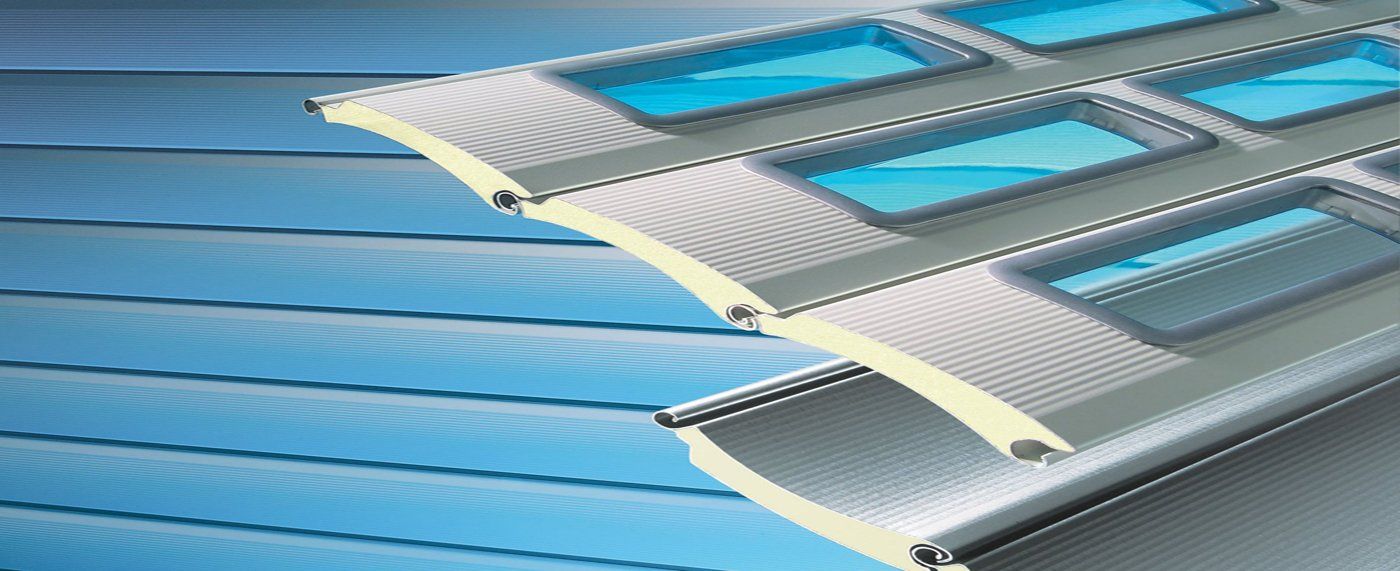

Aluminium profile lath curtain 37mm, 55mm, 77mm and 95mm deep foam filled. Type dependant upon door size and specification.

Steel Insulated Door

Steel profile lath curtain 75mm 85mm i95 and 100mm deep foam or polystyrene inserts. Type dependant upon door size and specification.

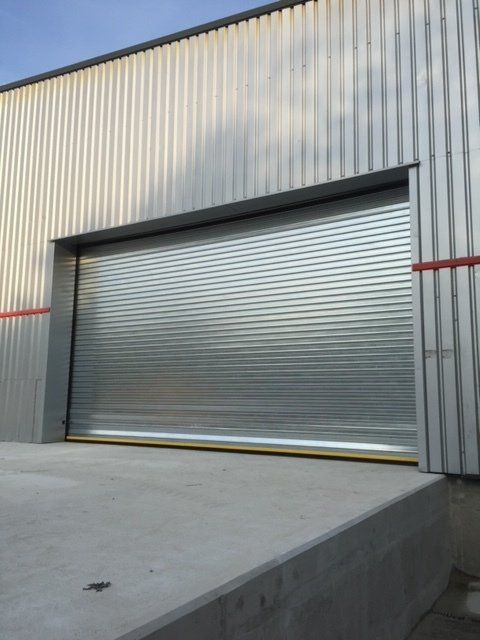

Industrial Insulated Roller Shutters

Curtain

The shutter curtain is constructed from either 75mm, 85mm i95 and 100mm twin interlocking cold rolled galvanised steel laths, depending upon size and application.

Infilled with a CFC free insulation giving a typical ‘U’ value of 0.69 w/m²k and an acoustic value of 18dBA. Each lath is retained using nylon endlocks to prevent lateral movement and fixed with blind steel rivets.

Standard finishes available are galvanised to both faces, Plastisol to either one or both internal and external faces, polyester powder coated finish to a standard RAL or BS colour.

Bottom Seal

Along the bottom of the shutter curtain is a plastic extrusion, fitted with a rubber seal and acts as the bottom rail seal.

Guide channels

90mm deep, pre-galvanised cold rolled steel guide channels. Fitted with twin brush seals to both internal and external faces effectively reduces operating noise whilst providing draught insulation.

Construction

Continuous vertical steel fixing angles, with fixings running full length reducing any significant load point. Fitted atop with laser cut mild steel end support plates onto which are mounted self-aligning bearings to support the mild steel roller barrel assembly. Size and thickness all dependent upon type and application.

Roller Door Drive Options

Used on smaller to medium sized openings that are either too large for push up, or where there is no electrical supply available. Hand chains operate either a gear driven or chain driven barrel assembly. Opening and closing is assisted by an helical counterbalanced spring within the barrel tube assembly. On doors exerting more than 25kg, a Safety Anti Fall Back Device is fitted to protect the fall back of the vertically moving door should a fault occur in the balancing components.

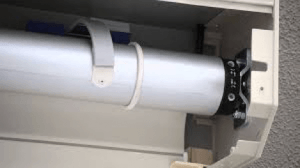

Electric Tubular Motor Roller shutter doors

240 volt, single-phase tubular motors, typically used on shop-front, office or domestic low use applications. The motor is mounted within the roller mechanism, which reduces the amount of space required to accommodate the shutter box assembly.

Safety brakes (anti fall-back device) mandatory since 2011 under the CPR (Construction product regulations) are fitted to comply with European regulations of failure of the one balancing component.

Emergency hand operation is provided as standard via a hook and eye style hand crank handle.

Available with a wide range of control options.

Key switch, Rocker Switch, Push Button, Remote Control and Group Control to operate numerous shutters from one remote control or location. UPS Battery Back Up

Electric Direct Drive Safedrive

240V and 415V Typically used on industrial applications.Integral safety brake (anti fall-back device) fitted within the motor gearbox protects the vertically opening door from falling. A direct drive motor eliminates the need for counterbalance springs, drive chains or gear trains. Ideal for high usage applications such as industrial premises, car parks or loading bays. Emergency hand chains, activated and operable from floor level are provided as standard.

Available with a wide range of control options.

Push Button, Key switch, Remote Control, Radar, Photo-Cell, Induction Floor Loops.

Fully Automatic, complete with optional Traffic Lights and all relevant Safety Features to comply with Health and Safety.

Motor Operator

240V and 415V Motors typically used on industrial and some domestic applications. Provided with a safety brake (anti fall-back device) fitted to the barrel assembly. Drive chain or gear drive, un-sprung and spring assisted arrangements.

Emergency hand chains activated and operable from high and floor level as well as hand crank if required, all provided as standard.

Available with a wide range of control options.

Push Button, Key switch, Remote Control, Radar, Photo-Cell, Induction Floor Loops, Fully Automatic complete with optional Traffic Lights and relevant Safety Features to comply with Health and Safety.
